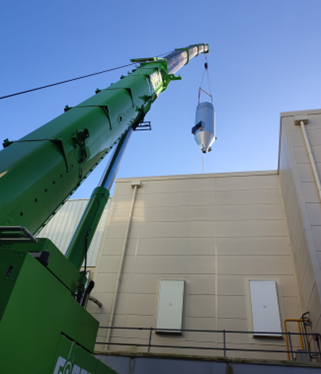

AT A GLANCE: 304L Stainless Circular Filter with 50mm thick insulation with a stainless-steel outer skin Outer shell surfaces to have 2B mill finish, welds ground smooth, strip polish appearance. Internal welds ground smooth and all internal surfaces polished to 0.6Ra. ATEX rated with explosion panel and ducting. CFD Modelling for design for non-deformation at […]
AT A GLANCE: SNCR System 10,000 litre Urea/Adblue bunded storage tank 4 x Ceramic coated Stainless Steel injection lances 4 x 4-20mA peristaltic dosing pumps 4kW high pressure lance cooling air fan 880L Stainless Steel bunded mixing tank Comms over ethernet control panel with HMI PROJECT MANAGER’S REPORT: In the constant pursuit of a cleaner, […]
AT A GLANCE: Design to replicate existing system installed in 2016. Air dilution to reduce temperature into bag filter with modulating valves. Double screw sorbent dosing skid with precoating system Bespoke Controls system. PROJECT MANAGERS REPORT: After a successful installation of the R&D sites first flue gas treatment plant back in 2016. We were contacted […]

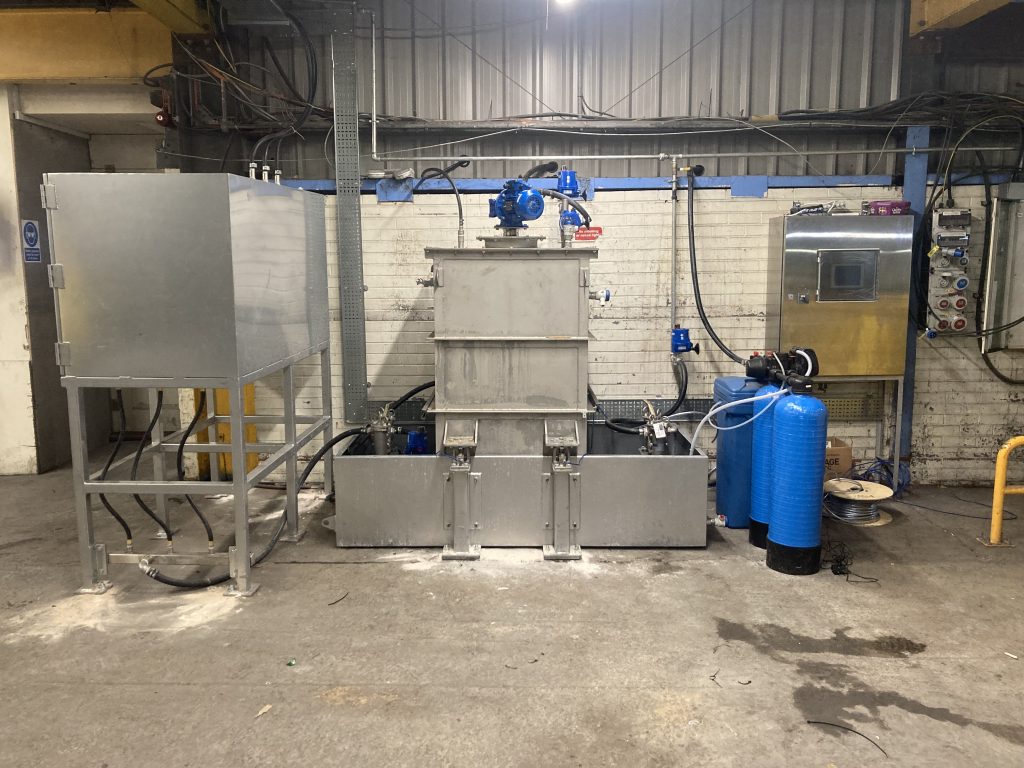

AT A GLANCE: SNCR System 10,000 litre Water bunded storage tank 6,000 litre Urea/Adblue bunded storage tank 3 x Ceramic coated Stainless Steel injection lances 3 x 4-20mA peristaltic dosing pumps 4kW high pressure lance cooling air fan 880L Stainless Steel bunded mixing tank 1.2m³/hr duplex water softener Comms over ethernet control panel with HMI […]
We were contracted to provide 2 small Ceramic filters suitable for a small volume but with a design maximum temperature of 600°C. In addition the filters will be handling a syngas which cannot be mixed with oxygen so an alternative to compressed air would need to be used for the ‘Cleanpulse’ cleaning of the 25 Ceramic element in each of these CPC78 filters. In addition dosing of small amounts of a re-agent is required so the client also opted for a ‘Cleandose’ 25kg bag skid. Find out more about Project CAD below.
